Grapple Bucket

Grapple Bucket

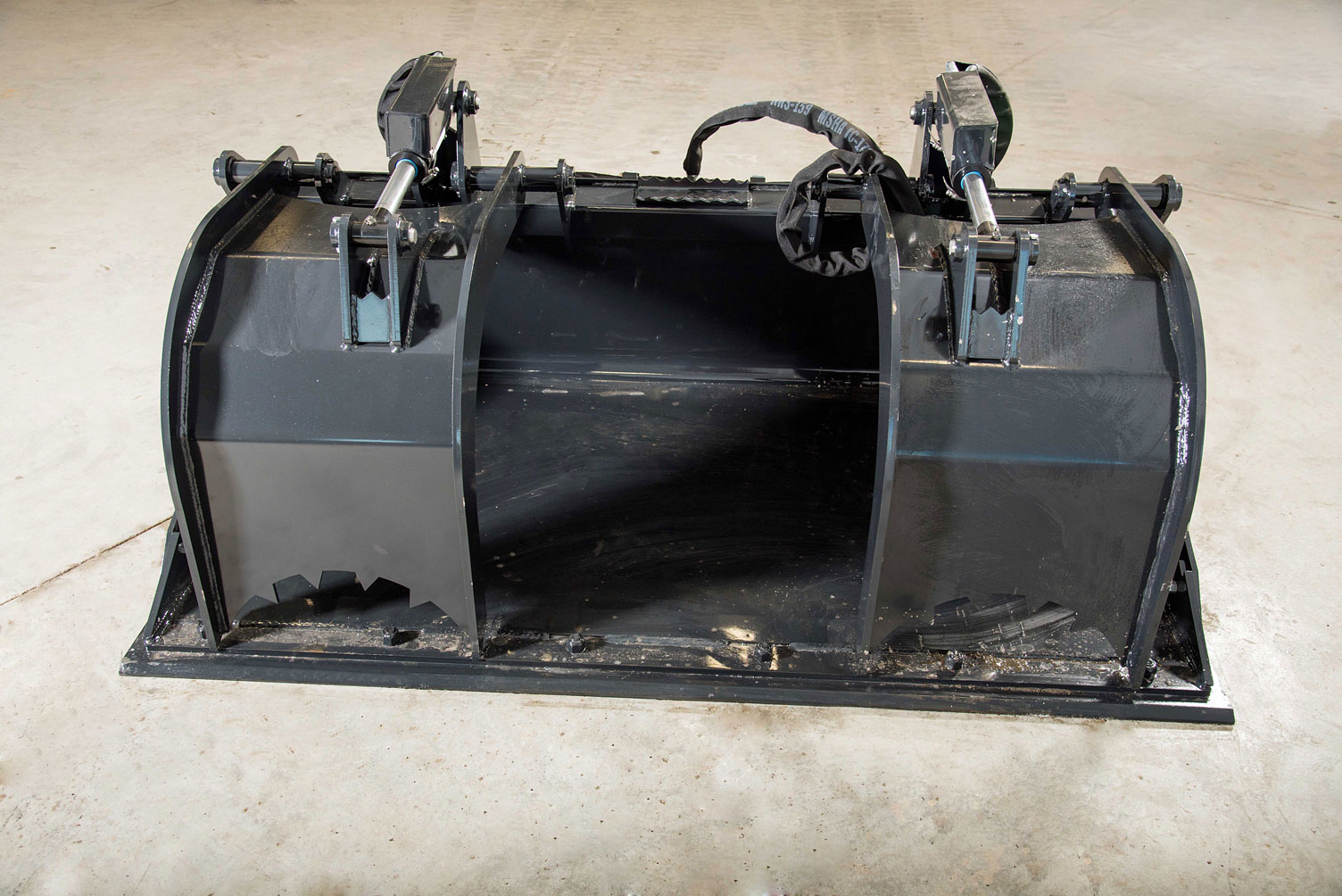

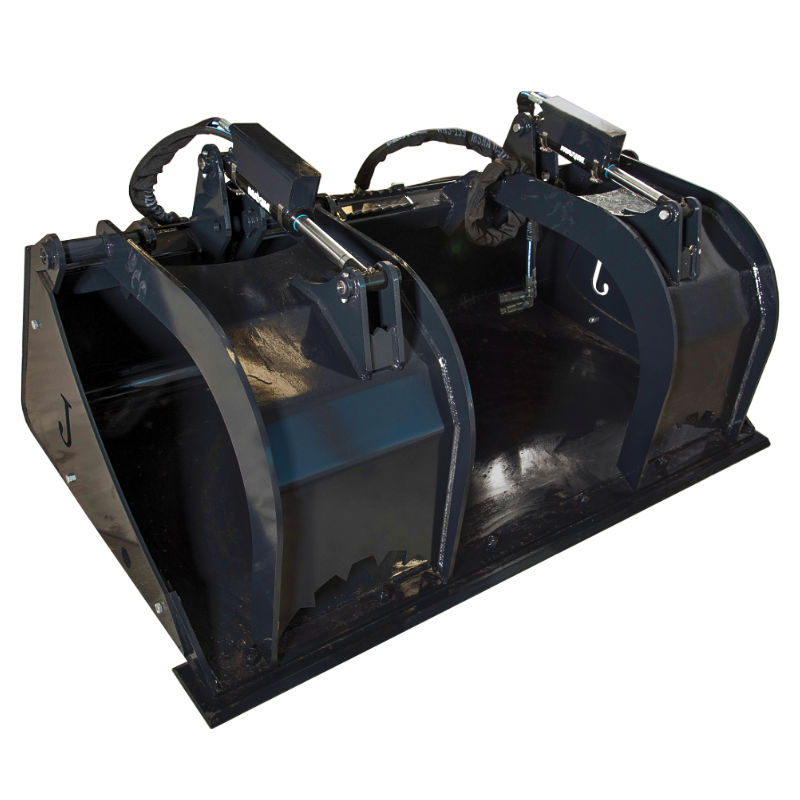

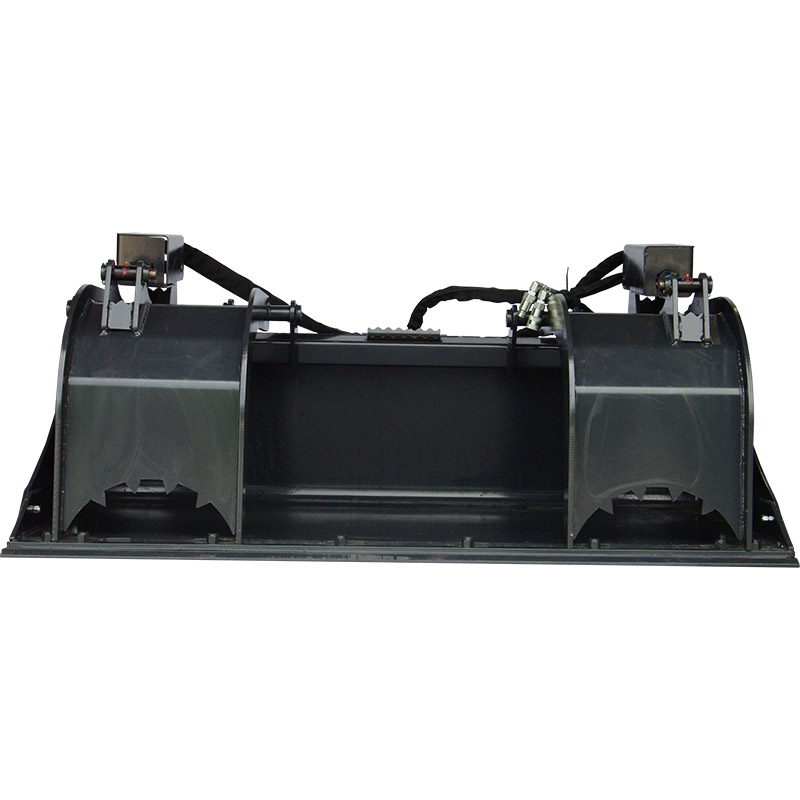

Born from our commercial grade heavy duty dirt buckets these grapples feature a 3/16” bucket material with 1/2” end caps that have bolt on removable side plates that remove easily for passing long debris (logs, pipe etc.) through the center of the grapples.

Clear
SKU: N/A Category:

Description

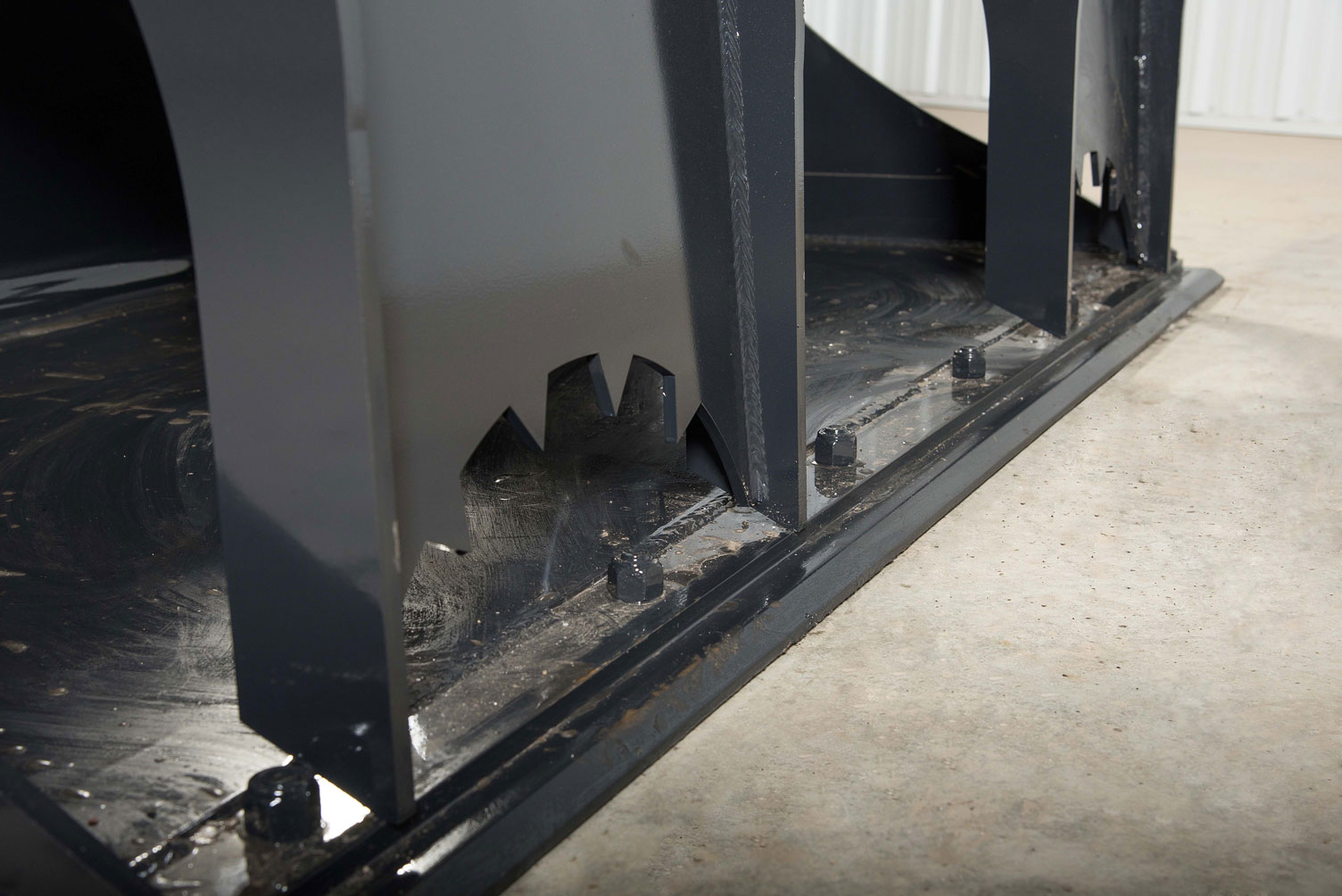

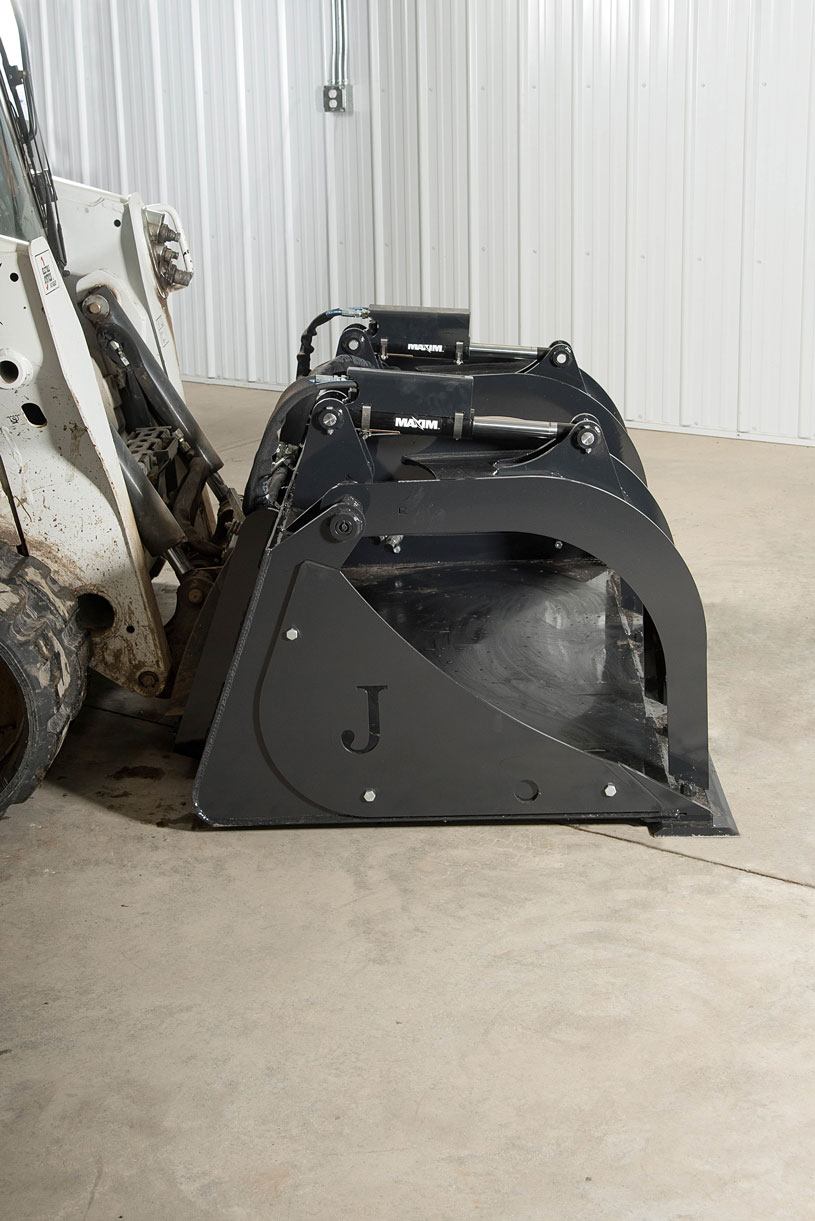

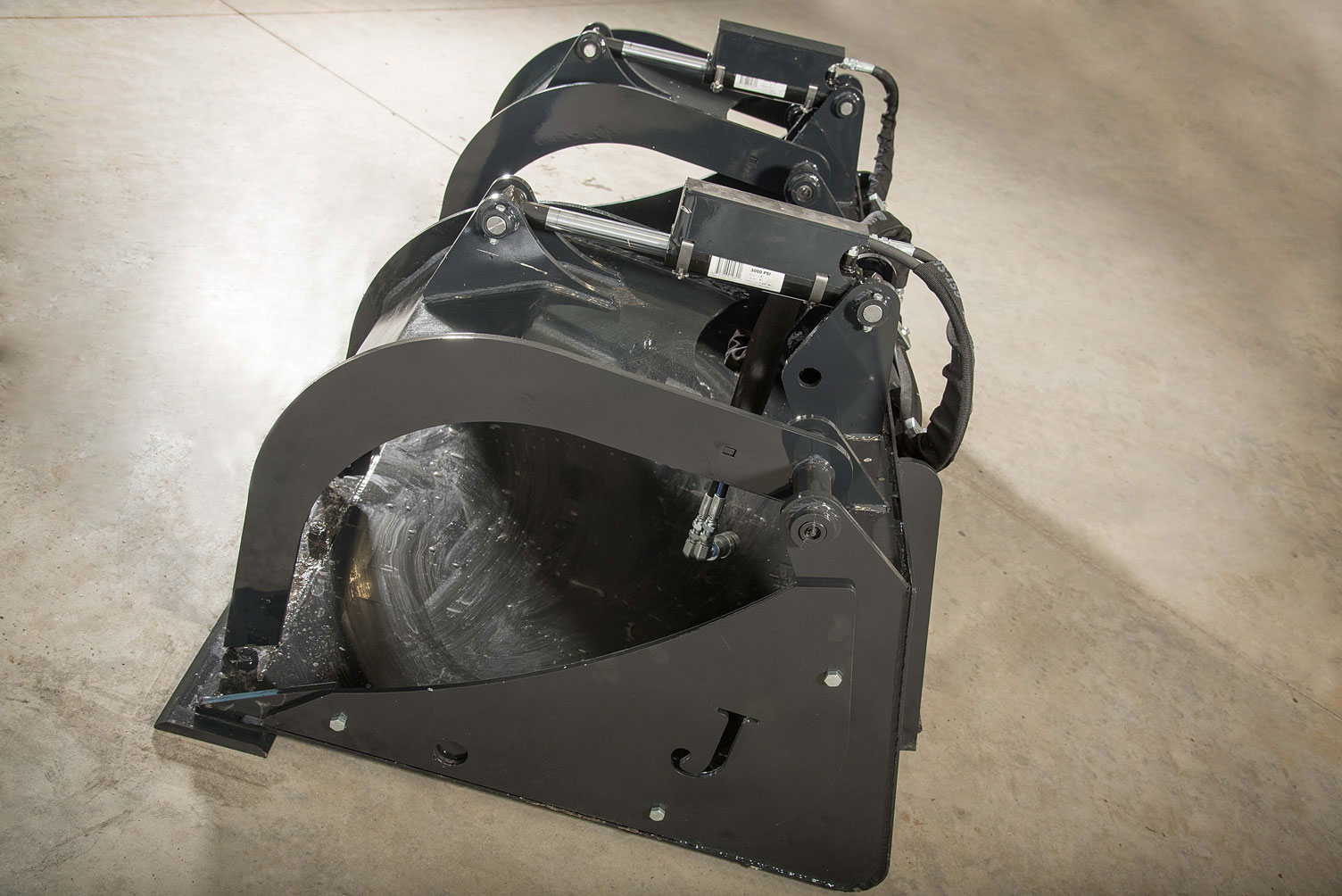

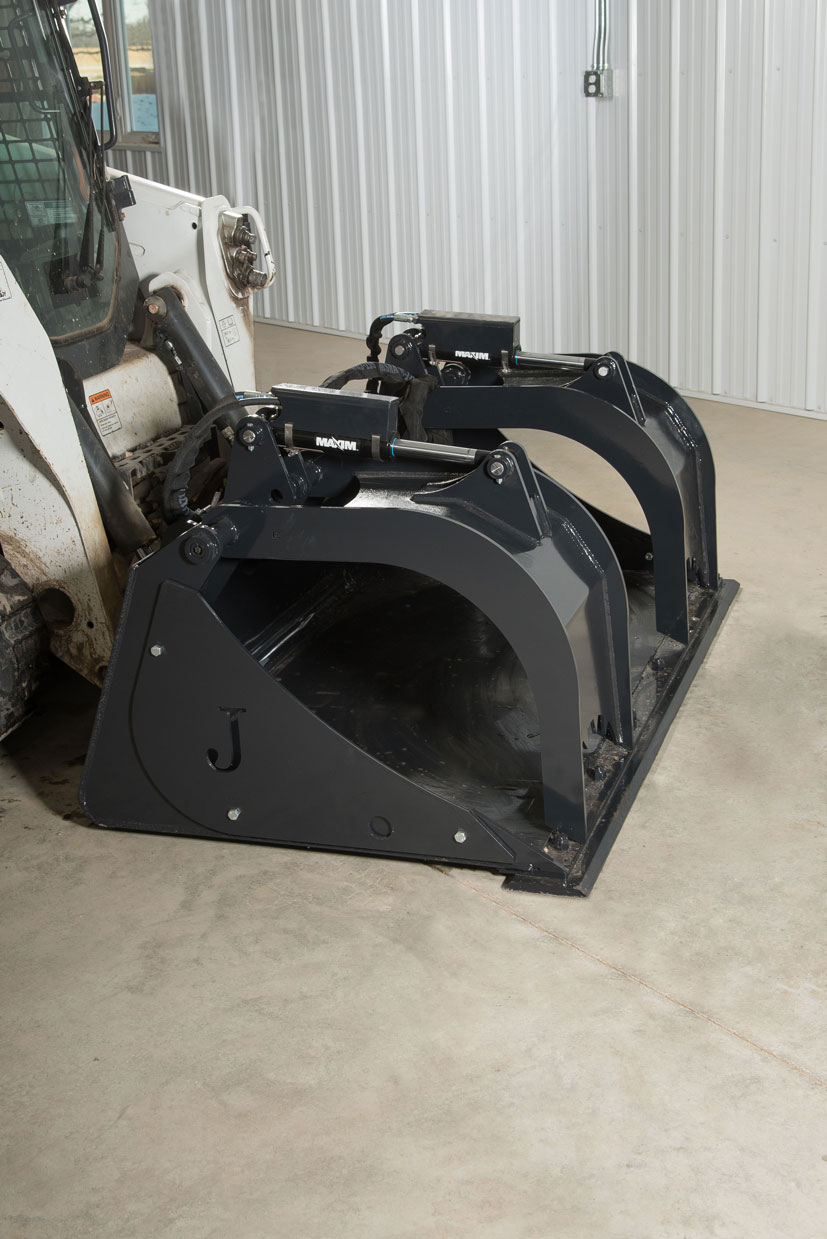

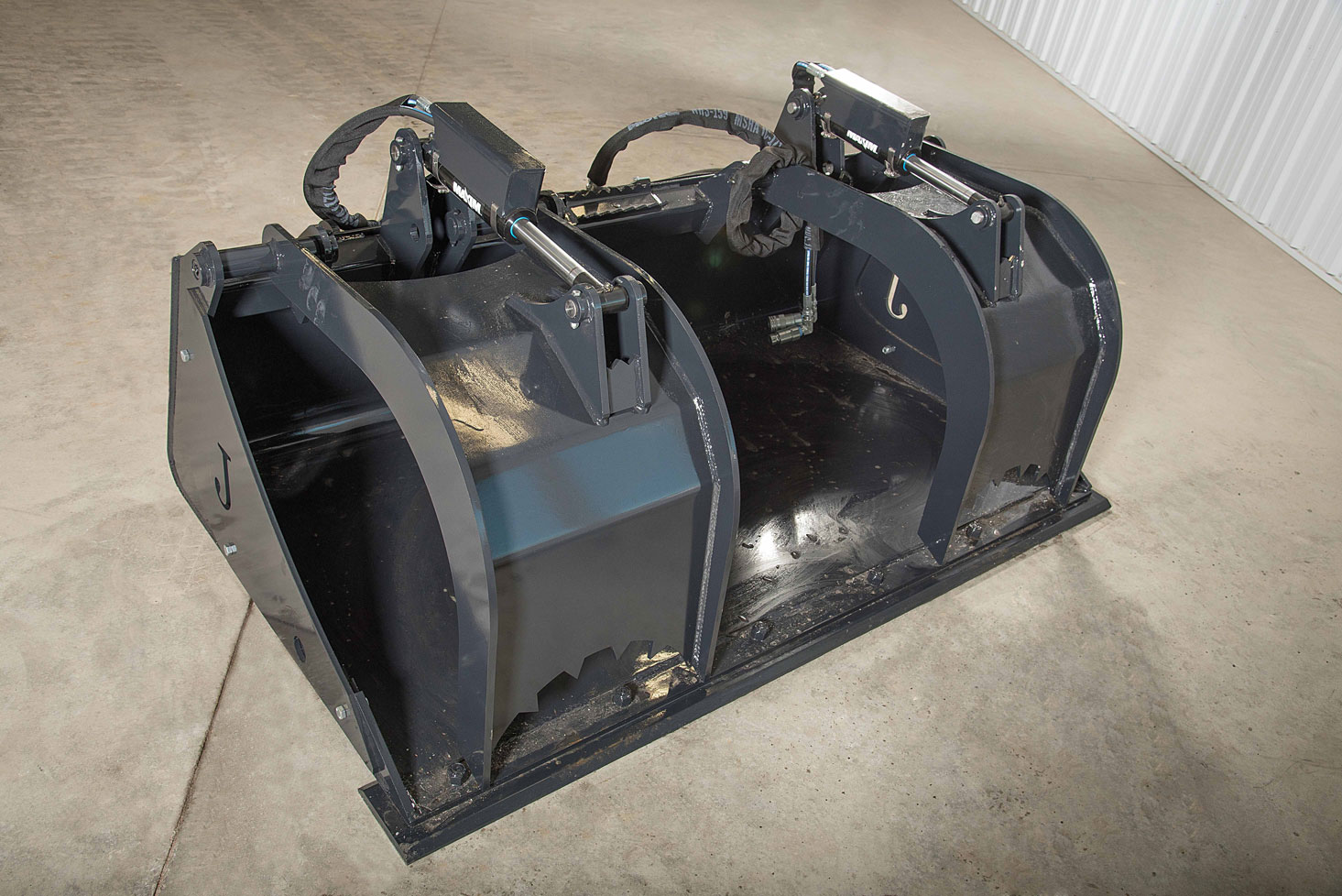

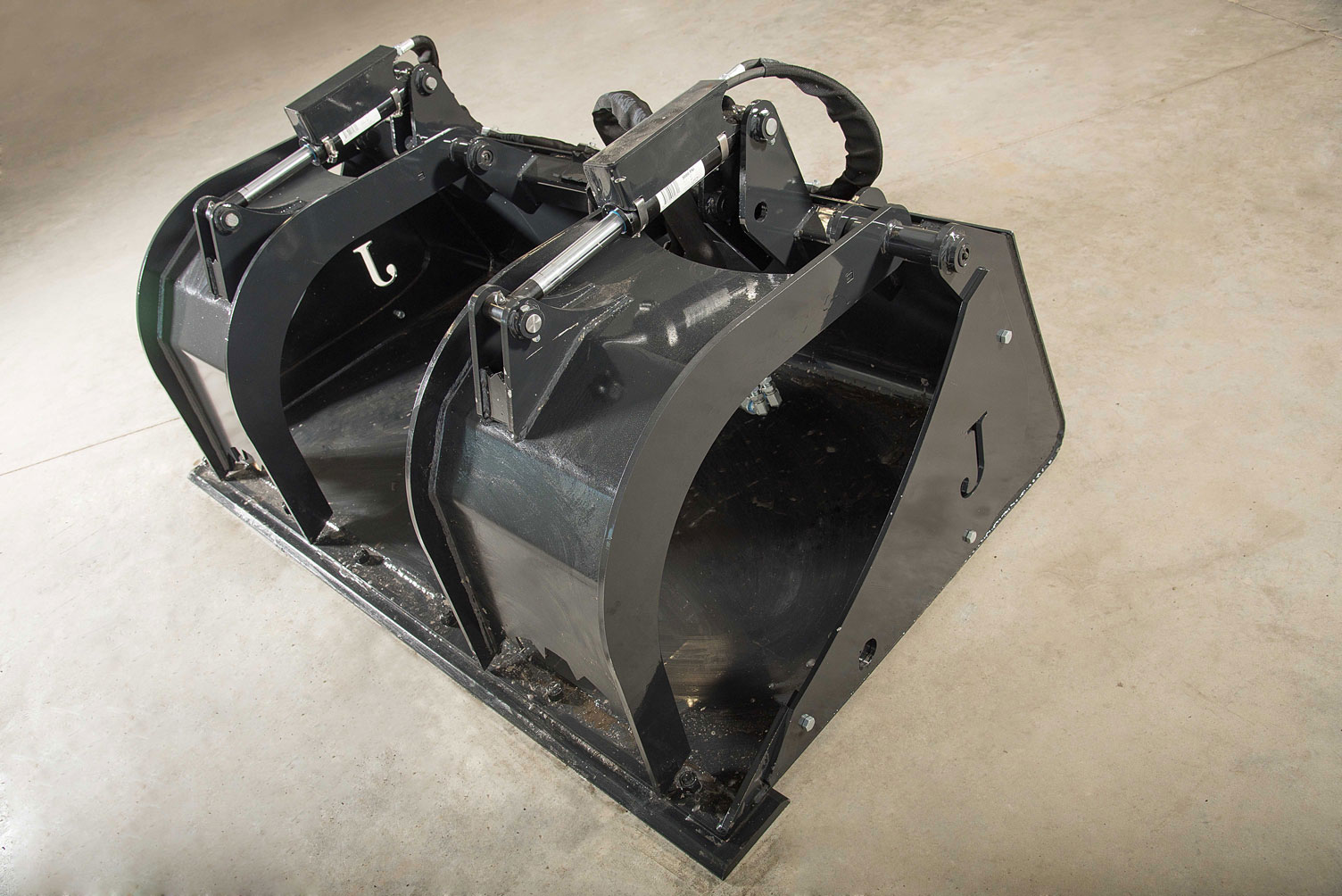

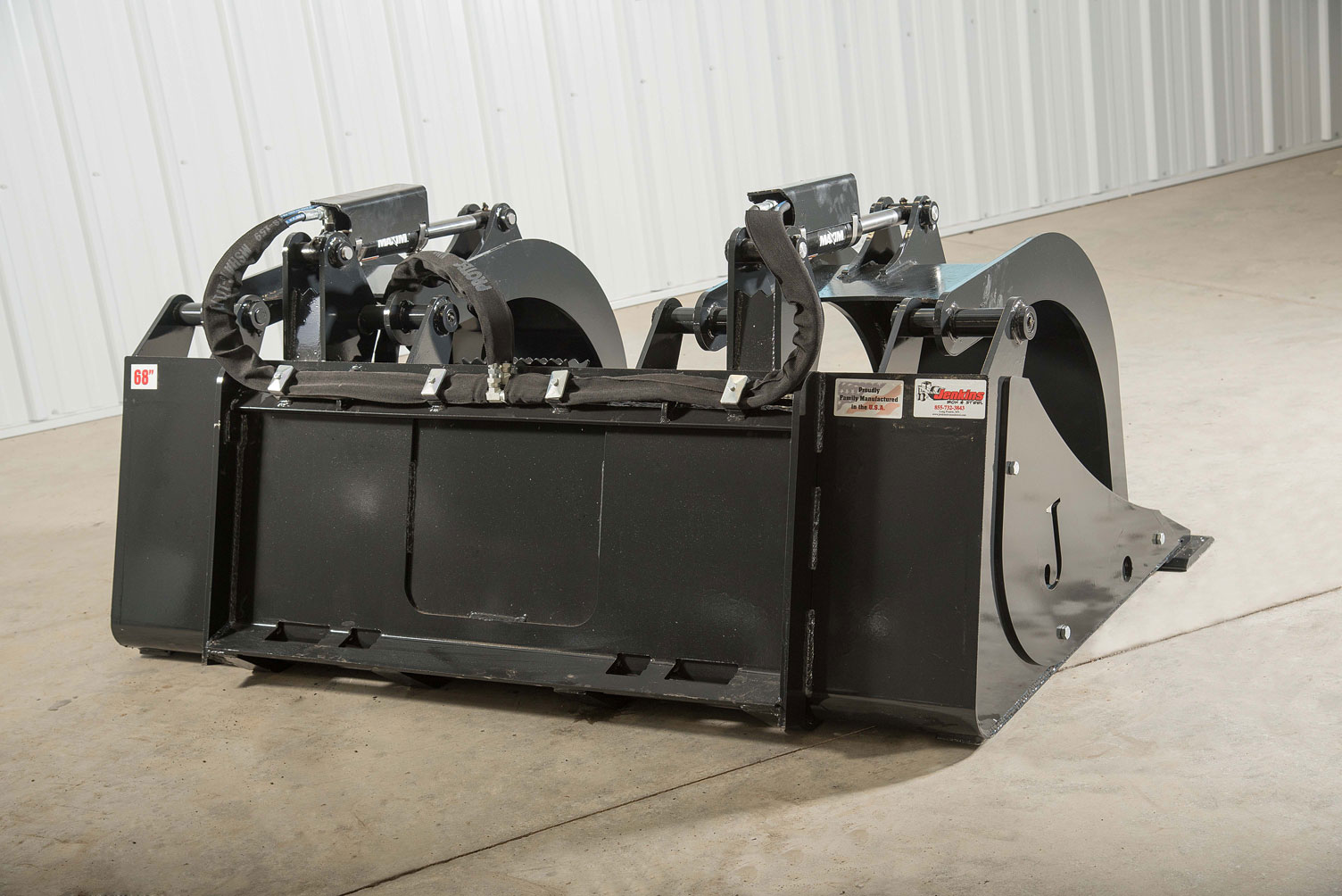

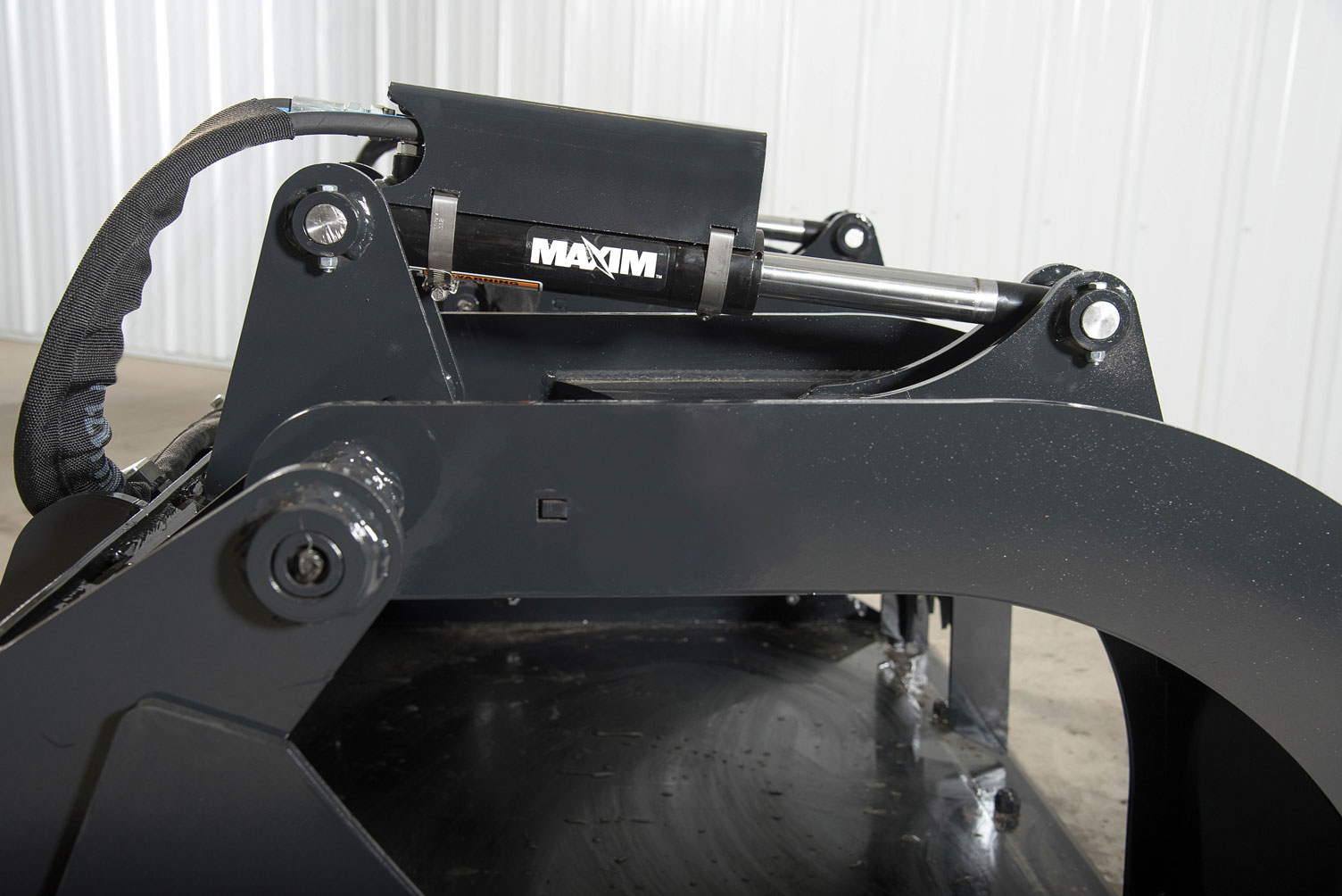

Born from our commercial grade heavy duty dirt buckets these grapples feature a 3/16” bucket material with 1/2” end caps that have bolt on removable side plates that remove easily for passing long debris (logs, pipe etc.) through the center of the grapples. Under strapped with ½” by 2 ½” solid steel bands that tie into and strengthens the mounting plate these buckets can handle a beating. Available in 68”, 74”, 78” and 84” widths our grapples come standard with a hardened ¾” bolt on, replaceable cutting edge. Like all of our grapples they have fully grease-able pivot points, cylinder covers and enclosed solid grapples. Dual cylinder grapples open and close together but close to different levels making them ideal for grapping and holding uneven loads in the bucket. Buckets are also available with replaceable digging teeth. The Grapple Bucket and Grapple Bucket VS are identical to our standard grapples but feature visibility slots cut into the grapples for those who require more visibility for digging and brush with the grapple claws up. All Jenkins hydraulic attachments come with hoses, cylinders and flat face couplers. All Jenkins Iron and Steel attachments can be modified to fit a variety of tractor loader models including but not limited to John Deere, Westendorf, Global, Euro, Koyker, New Holland, Kubota etc. Please call with your model number or pick out your hook up style with picture aids listed here. Various skid steer loader mounts are also available for those without universal skid steer quick attach, please call for additional information!

Features

  • 68″, 74″, 78″, 84″

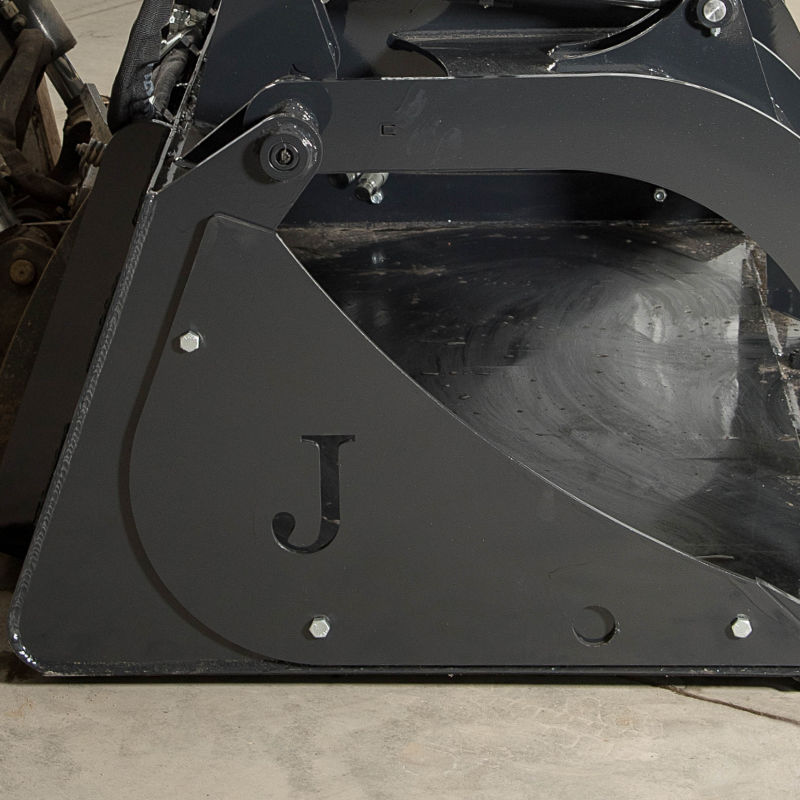

  • Removable End Plates
  • 3/16″ Bucket Material
  • 1/2″ End Plates

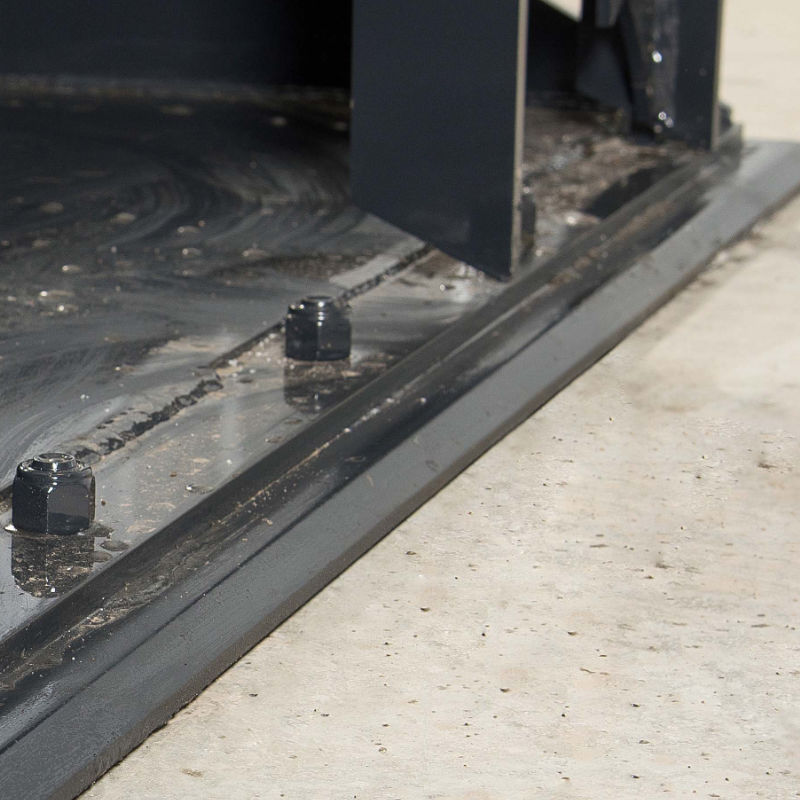

  • 3/4″ Reversible Bolt on Cutting Edge
  • 1/2″ Thick Grapples

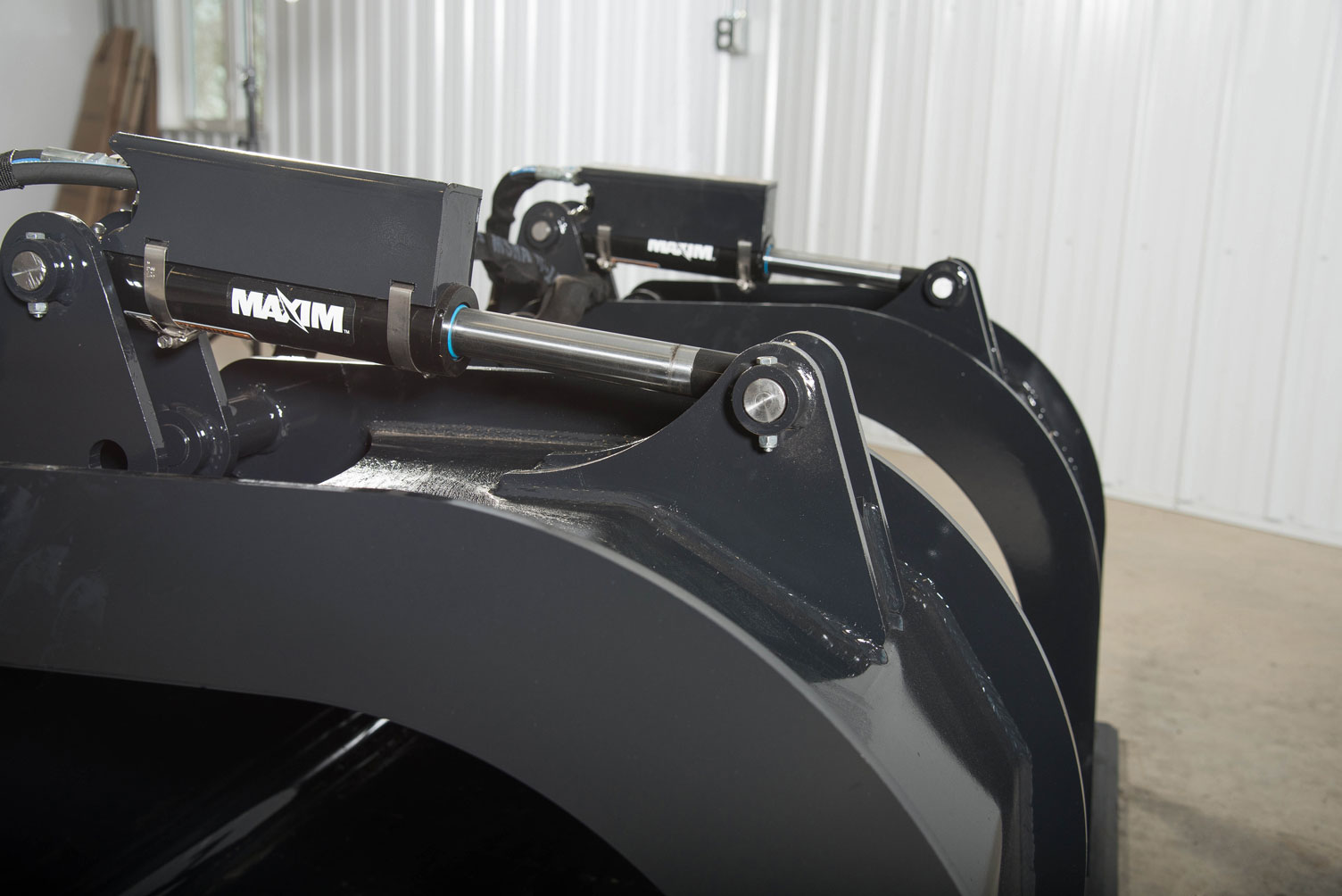

  • 3000lb hydraulic cylinders
  • 1/2″ x 2-1/2″ under under supports
  • Visibility Slot
  • Modified to fit a variety of tractor loader models

Specifications

Width 68″ 74″ 78″ 84″
Overall Length 34″ 34″ 34″ 34″
Overall Height 23″ 23″ 23″ 23″
Grapple Opening 39″ 39″ 39″ 39″
Weight 943lbs 978lbs 1007lbs 1065lbs

Additional information

Size

68", 74", 78", 84"

Add On

Visibility Slots, None
